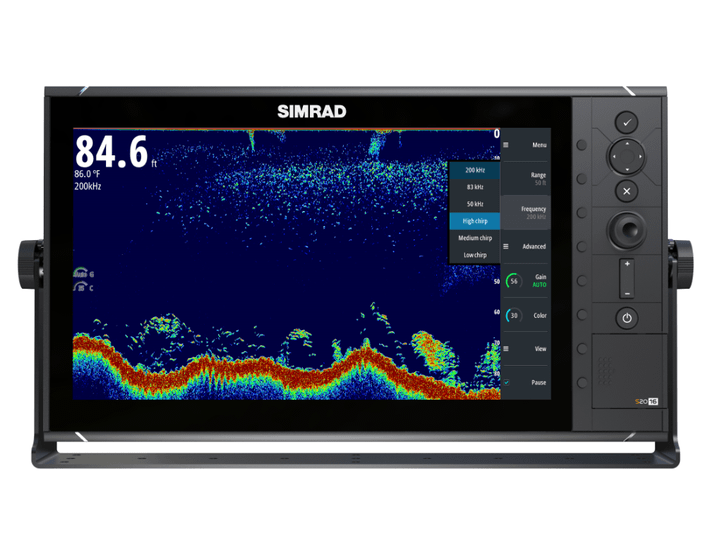

The Simrad S2016 Fish Finder combines a Broadband Sounder™ module with CHIRP technology, 16-inch widescreen display for an extensive on-screen history, and intuitive keypad-driven operation. Robust and offering both bracket and flush-mount installation options, the S2016 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.
- Dedicated fish-finder with integrated single-channel Broadband Sounder™ module and CHIRP technology
- High depth penetration and ping speed
- Vertical heave compensation (HS60 or HS70 required)
- 16-inch 1366x768-pixel high-definition widescreen LCD
- HDMI output for mirrored secondary display
- See clearly with White Line, White Marker, and Colour Erase features
- Simple operation with 8 direct-access menu keys
- Bracket and flush mounting options (bracket included)
- Full-sized SD card slot for logs and software updates
- Ethernet, NMEA0183 & NMEA2000 connectivity. Full ethernet networking avaliable via RTM-2 Software Update. June 2016
Integrated Broadband Sounder™ Module The S2016 includes an integrated Broadband Sounder™ module with plug-and-play transducer port, compatible with Simrad and Airmar transducers equipped with blue 7-pin connectors. Adapters are available to allow easy and cost-effective retrofit of existing Simrad, Airmar, and other third-party transducers.
CHIRP Technology
The S2016 includes CHIRP technology, which utilizes frequency-swept sonar pulses to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar at all depth ranges. Simrad technology makes CHIRP available not only on special-purpose CHIRP transducers, but also via traditional single-frequency transducers. Vessels with a suitable transducer already installed can add CHIRP technology simply by installing an S2000-series Fish Finder, offering an extremely cost-effective upgrade.
Vertical Heave Compensation
Heave compensation eliminates the vertical effects of wave action from sonar depth measurements, enhancing the accuracy and consistency of bottom tracking in rough conditions. This feature requires a compatible NMEA 2000®-connected satellite compass such as the Simrad HS60 or HS70 to provide real-time heave data.
16-inch Widescreen Display
With a high-definition 16-inch LCD in widescreen format, the S2016 offers a combination of excellent vertical detail and a lengthy on-screen echosounder history. This reduces the operator's need to zoom or scroll, while allowing easy backtracking to promising areas.
White Line, White Marker and Colour Erase
The S2016 Fish Finder offers a range of features to quickly and easily adjust the on-screen image to suit the task at hand. White Line clearly separates the water column from the bottom with a high-contrast white line, for enhanced bottom visibility. White Marker allows any user-selected colour from the fish finder image to be replaced with high-contrast white, highlighting specific sonar echoes corresponding to fish or other targets of interest. Colour Erase allows any selected colour to be blended into the background, eliminating unwanted noise or unimportant features from the display.
Keypad Operation with Direct-Access Menu Keys
The S2016 is operated by an integrated keypad and rotary dial. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, for one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2016's large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.
Rugged Design with Flexible Mounting Options
The S2016 may be flush-mounted, ideal for installation aboard new vessels. Alternatively, the included gimbal bracket is well suited to outside installations or pilothouse refits. With watertight rear connectors, the S2016 is IPX7 water-resistant from all sides, in either flush- or bracket-mount installation.
Networking & Expansion
The S2016 includes Ethernet connectivity to share sonar data with other Simrad systems including NSO evo2 and NSS evo2 multifunction displays. The S2016 may also be used as a dedicated fish finder display for NSS evo2 systems, receiving sonar data from an NSS evo2 display's built-in Broadband Sounder™ module. Other devices may be networked via the S2016's NMEA 2000® and dual NMEA 0183® ports, enabling additional functionality such as waypoint marking and sharing with compatible devices * Simrad Commercial S2009 and S2016 products currently only support limited Ethernet networking capabilities to Simrad BSM-2 and BSM-3 sounders. Full Ethernet networking to the Simrad line of Displays and ECDIS, as well as the SonarHub sounder module will be implemented in the RTM2 software release expected delivery June 2016.
HDMI Output for Display Mirroring
An HDMI output gives the option of a secondary monitor mirroring the S2016's primary display, allowing fish finder data to be made visible at two separate stations or duplicated on a larger bulkhead-mounted screen. The S2016 is compatible with Simrad MO-series marine monitors, and other standard HDMI-capable displays.
Sonar Log Recording – ciBioBase and Insight Genesis Compatible
The S2016 is capable of recording sonar history to a full-sized SD memory card, which may be easily inserted and removed via a waterproof access hatch on the front panel. Recorded sonar logs may be used with the cloud-based Insight Genesis™ service to create custom fishing charts, or BioBase GIS software to create detailed aquatic bathymetric and vegetation maps for survey and research purposes.
Display
Display Resolution | 1366 x 768 |
Display Type | 16-inch LED-backlit Colour TFT LCD |
Brightness | 400 cd/m2 |
Display Size | 16-inch widescreen |
Overview
Echosounder Max Depths | 3,000 m / 10,000 ft (transducer-dependent) |
Echosounder Transducers | Standard Broadband and single-channel CHIRP Transducers |
Echosounder Frequencies | CHIRP 28-38 kHz, 40-60 kHz, 85-145 kHz, 130-210kHz, Broadband 28kHz, 38kHz, 50kHz, 83kHz, 200kHz |
Output Power [kW] | 1 kW RMS |
Technical/Environmental
Water Resistance | IPX7 |
Product Width | 455.5 mm / 17.93 in |
Product Depth | 82.3 mm / 3.24 in |
Product Height | 260.1 mm / 10.24 in |
Power
Power Supply (Supply Voltage) | 10.8-31.2 V DC |
Connectors
Connectors | 2x NMEA0183, 1x NMEA2000, 1x Ethernet, 1x HDMI output, Power |
